Please send RFQ , we will respond immediately.

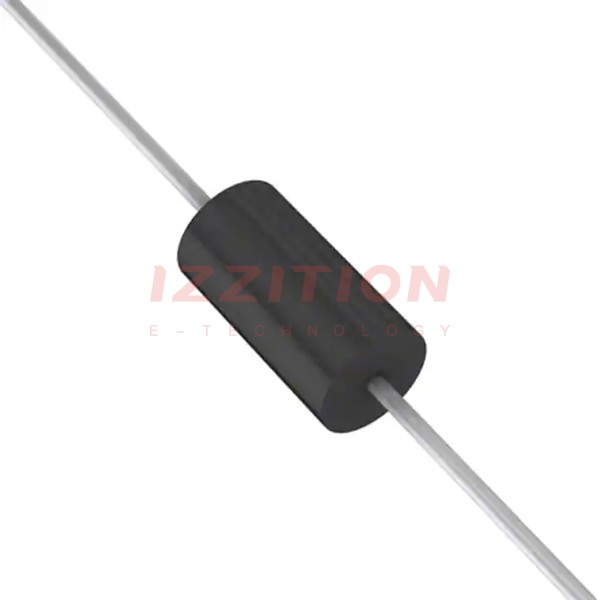

| Part Number | JANTX1N969DUR-1/TR | JANTX1N962DUR-1/TR | JANTX1N963DUR-1/TR | JANTX1N964DUR-1/TR | JANTX1N965DUR-1/TR | JANTX1N966DUR-1/TR | JANTX1N967DUR-1/TR | JANTX1N968DUR-1/TR | JANTX1N969BUR-1/TR | JANTX1N969CUR-1/TR |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 22 V | 11 V | 12 V | 13 V | 15 V | 16 V | 18 V | 20 V | 22 V | 22 V |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 29 Ohms | 9.5 Ohms | 11.5 Ohms | 13 Ohms | 16 Ohms | 17 Ohms | 21 Ohms | 25 Ohms | 29 Ohms | 29 Ohms |
| Current - Reverse Leakage @ Vr | 500 nA @ 17 V | 1 µA @ 8.4 V | 1 µA @ 9.1 V | 500 nA @ 9.9 V | 500 nA @ 11 V | 500 nA @ 12 V | 500 nA @ 14 V | 500 nA @ 15 V | 500 nA @ 17 V | 500 nA @ 17 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) |
