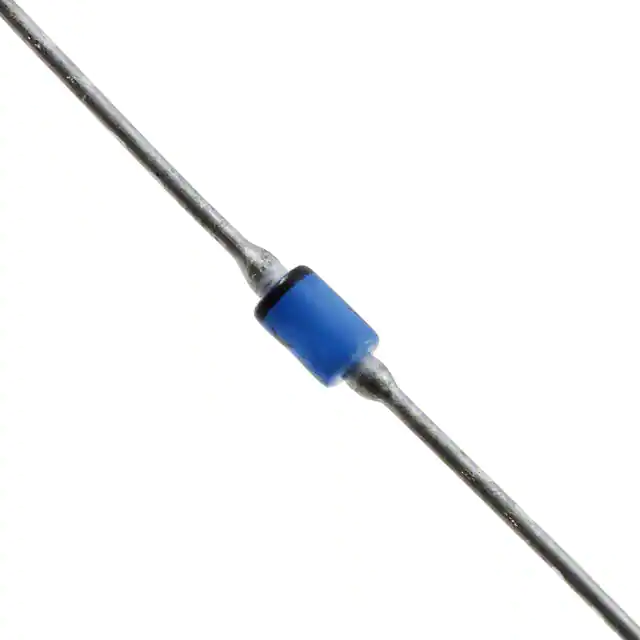

| Part Number | JANTX1N6643 | JANTX1N6663 | JANTX1N6640 | JANTX1N6642 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | MACOM Technology Solutions | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 125 V | 600 V | 50 V | 75 V |
| Current - Average Rectified (Io) | 300mA | 500mA | 300mA (DC) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1 V @ 400 mA | 1 V @ 200 mA | 1.2 V @ 100 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6 ns | - | 4 ns | 20 ns |
| Current - Reverse Leakage @ Vr | 50 nA @ 20 V | 50 nA @ 600 V | 90 µA @ 50 V | 500 nA @ 75 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz | - | - | 5pF @ 0V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | DO-204AH, DO-35, Axial | D, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | 05 Plastic Package | DO-35 | - | DO-35 |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
