Please send RFQ , we will respond immediately.

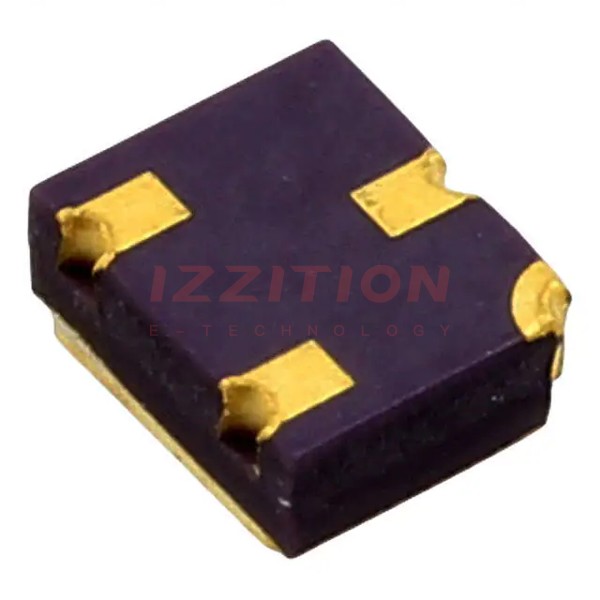

| Part Number | JANTX1N6642UB/TR | JANTX1N6642US/TR | JANTX1N6642UBD/TR | JANTX1N6642U/TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V | 75 V | 75 V | 75 V |
| Current - Average Rectified (Io) | 300mA (DC) | 300mA | 300mA (DC) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns | 5 ns | 20 ns | 20 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 75 V | 500 nA @ 75 V | 500 nA @ 75 V | 500 nA @ 75 V |
| Capacitance @ Vr, F | - | 5pF @ 0V, 1MHz | - | 5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, No Lead | SQ-MELF, D | 3-SMD, No Lead | SQ-MELF, B |
| Supplier Device Package | UB | D-5D | UB | D-5B |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
