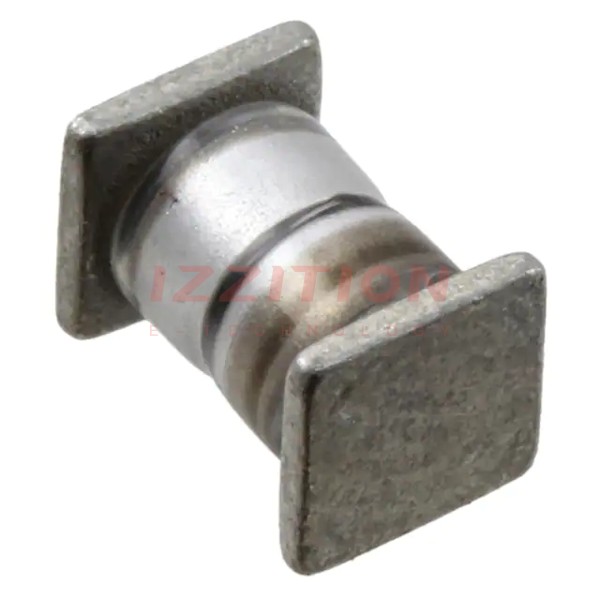

| Part Number | JANTX1N6624US/TR | JANTX1N6625US/TR | JANTX1N6626US/TR | JANTX1N6628US/TR | JANTX1N6627US/TR | JANTX1N6620US/TR | JANTX1N6621US/TR | JANTX1N6622US/TR | JANTX1N6623US/TR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 990 V | 1.1 V | 200 V | 660 V | 440 V | 220 V | 440 V | 660 V | 880 V |
| Current - Average Rectified (Io) | 1A | 1A | 1.75A | 1.75A | 1.75A | 2A | 2A | 2A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 1 A | 1.75 V @ 1 A | 1.35 V @ 2 A | 1.35 V @ 2 A | 1.35 V @ 2 A | 1.4 V @ 1.2 A | 1.4 V @ 1.2 A | 1.4 V @ 1.2 A | 1.55 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 60 ns | 45 ns | 30 ns | 30 ns | 30 ns | 30 ns | 30 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 990 V | 500 nA @ 1.1 V | 2 µA @ 200 V | 2 µA @ 660 V | 2 µA @ 440 V | 500 nA @ 220 V | 500 nA @ 440 V | 500 nA @ 660 V | 500 nA @ 880 V |
| Capacitance @ Vr, F | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | - | 40pF @ 10V, 1MHz | 40pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, E | SQ-MELF, E | SQ-MELF, E | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | D-5A | D-5A | D-5B | D-5B | D-5B | D-5A | D-5A | D-5A | D-5A |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
