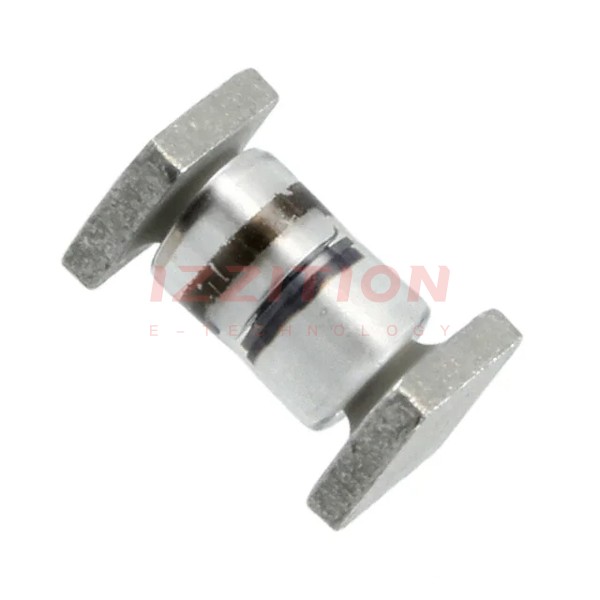

| Part Number | JANTX1N6488US/TR | JANTX1N6489US/TR | JANTX1N6485US/TR | JANTX1N6487US/TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 4.3 V | 4.7 V | 3.3 V | 3.9 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 1.5 W | 1.5 W | 1.5 W | 1.5 W |
| Impedance (Max) (Zzt) | 9 Ohms | 8 Ohms | 10 Ohms | 9 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1 V | 4 µA @ 1 V | 50 µA @ 1 V | 35 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | D-5A | D-5A | D-5A | A, SQ-MELF |
