Please send RFQ , we will respond immediately.

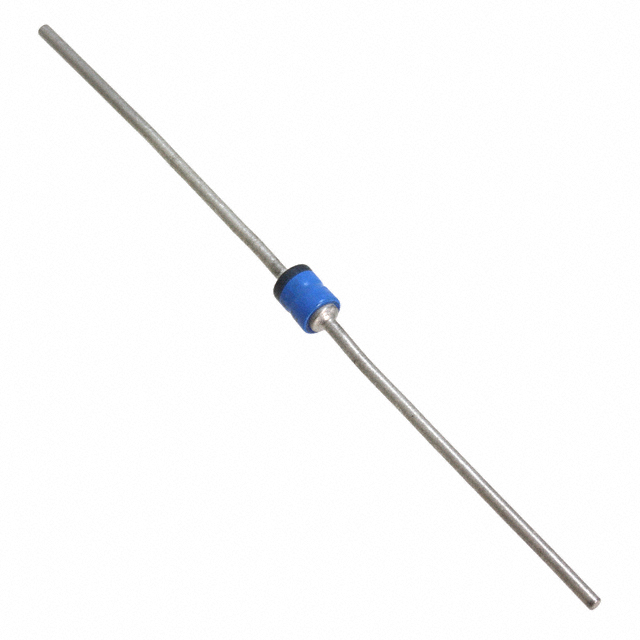

| Part Number | JANTX1N6467 | JANTX1N6468 | JANTX1N6469 | JANTX1N6461 | JANTX1N6462 |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 40.3V | 51.6V | 5V | 5V | 6V |
| Voltage - Breakdown (Min) | 43.7V | 54V | 5.6V | 5.6V | 6.5V |
| Voltage - Clamping (Max) @ Ipp | 63.5V | 78.5V | 9V | 9V | 11V |
| Current - Peak Pulse (10/1000µs) | 45A (8/20µs) | 35A (8/20µs) | 945A (8/20µs) | 315A (8/20µs) | 258A (8/20µs) |
| Power - Peak Pulse | 500W | 500W | 1500W (1.5kW) | 500W | 500W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | B, Axial | B, Axial | G, Axial | B, Axial | B, Axial |
| Supplier Device Package | Axial | Axial | Axial | - | Axial |
