Please send RFQ , we will respond immediately.

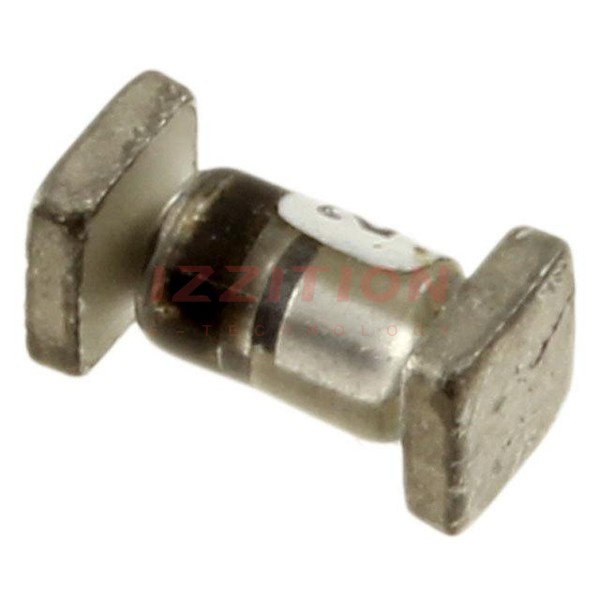

| Part Number | JANTX1N6333DUS | JANTX1N6333US | JANTX1N6323DUS | JANTX1N6330DUS |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Discontinued at Digi-Key | Active | Active |
| Voltage - Zener (Nom) (Vz) | 24 V | 24 V | 9.1 V | 18 V |
| Tolerance | ±1% | ±5% | ±1% | ±1% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 24 Ohms | 24 Ohms | 6 Ohms | 14 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 18 V | 50 nA @ 18 V | 1 µA @ 7 V | 50 nA @ 14 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1 A | 1.4 V @ 1 A | 1.4 V @ 1 A | 1.4 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF |
