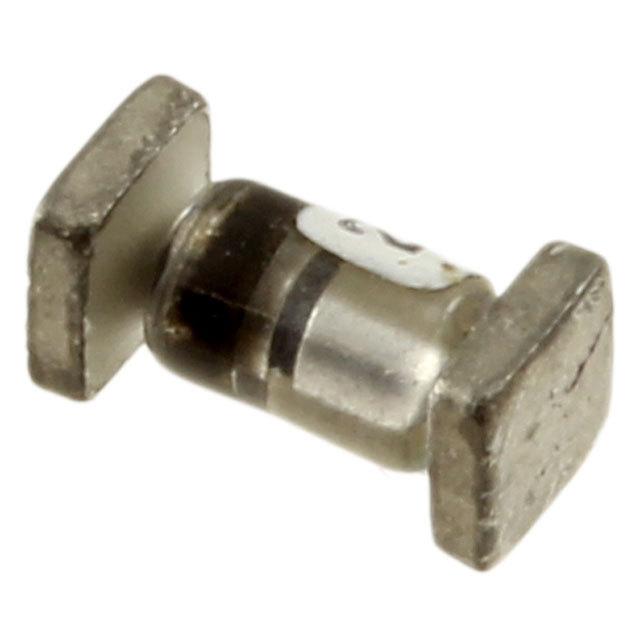

| Part Number | JANTX1N6323CUS | JANTX1N6323US | JANTX1N6323DUS | JANTX1N6327CUS |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 9.1 V | 9.1 V | 9.1 V | 13 V |
| Tolerance | ±2% | ±5% | ±1% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 6 Ohms | 6 Ohms | 6 Ohms | 8 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 7 V | 1 µA @ 7 V | 1 µA @ 7 V | 50 nA @ 9.9 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1 A | 1.4 V @ 1 A | 1.4 V @ 1 A | 1.4 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF |
