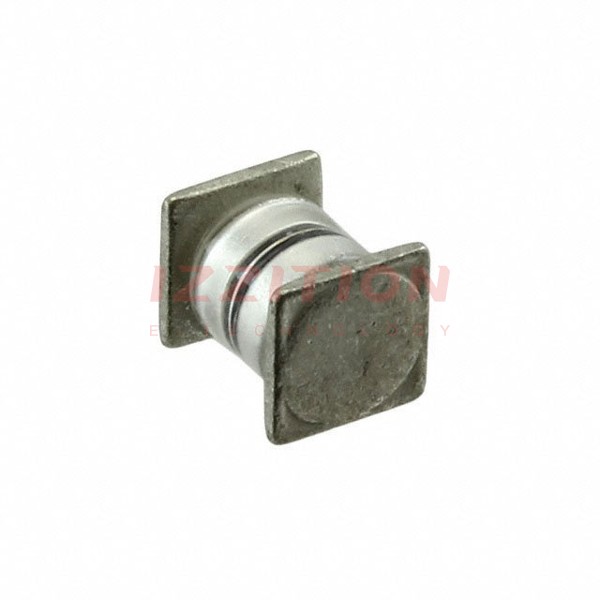

| Part Number | JANTX1N6165AUS | JANTX1N6167AUS | JANTX1N6125AUS | JANTX1N6135AUS | JANTX1N6155AUS | JANTX1N6161AUS | JANTX1N6162AUS | JANTX1N6163AUS |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Semtech Corporation | Microchip Technology | Microchip Technology | Microchip Technology | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Product Status | Active | Discontinued at Digi-Key | Active | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 69.2V | 83.6V | 47.1V | 121.6V | 27.4V | 47.1V | 51.7V | 56V |
| Voltage - Breakdown (Min) | 86.5V | 104.5V | 58.9V | 152V | 34.2V | 58.9V | 64.6V | 71.3V |
| Voltage - Clamping (Max) @ Ipp | 125.1V | 151.3V | 85.3V | 218.4V | 49.9V | 85.3V | 97.1V | 103.1V |
| Current - Peak Pulse (10/1000µs) | 12A | 9.9A | 5.9A | 2.3A | 30.1A | 17.6A | 15.4A | 14.5A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 500W | 500W | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, C | SQ-MELF | SQ-MELF, B | SQ-MELF, B | SQ-MELF, C | SQ-MELF | SQ-MELF | SQ-MELF |
| Supplier Device Package | C, SQ-MELF | - | B, SQ-MELF | B, SQ-MELF | C, SQ-MELF | - | - | - |
