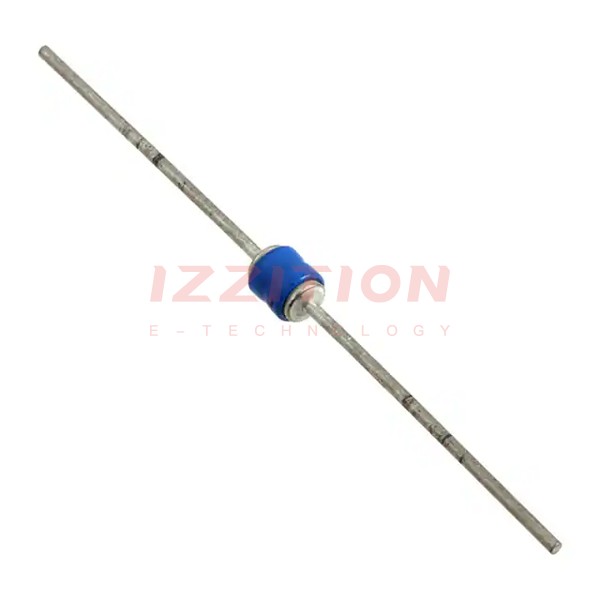

| Part Number | JANTX1N6146A/TR | JANTX1N6149A/TR | JANTX1N6106A/TR | JANTX1N6116A/TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 11.4V | 15.2V | 7.6V | 20.6V |
| Voltage - Breakdown (Min) | 14.25V | 19V | 9.5V | 25.7V |
| Voltage - Clamping (Max) @ Ipp | 21V | 27.7V | 14.5V | 37.4V |
| Current - Peak Pulse (10/1000µs) | 71.4A | 54.2A | 34.5A | 13.4A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 500W | 500W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | G, Axial | G, Axial | B, Axial | B, Axial |
| Supplier Device Package | C, Axial | C, Axial | - | - |
