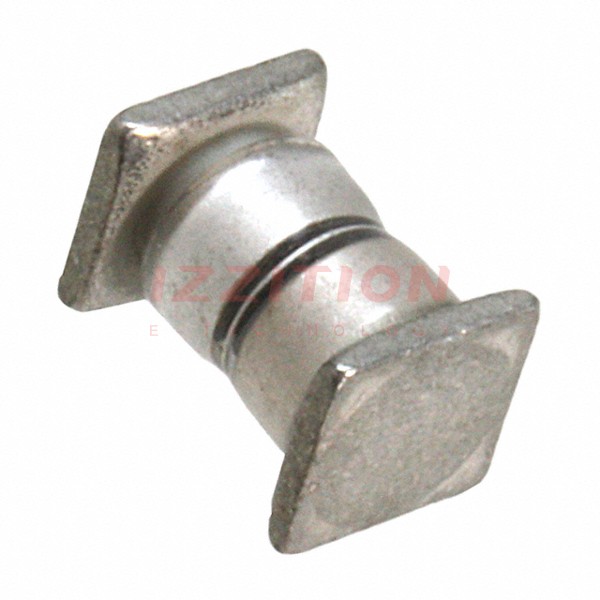

| Part Number | JANTX1N6114AUS | JANTX1N6119AUS | JANTX1N6134AUS | JANTX1N6117AUS | JANTX1N6114US | JANTX1N6154AUS | JANTX1N6110AUS | JANTX1N6112AUS | JANTX1N6113AUS |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microsemi Corporation | Semtech Corporation | Microchip Technology | Microchip Technology | Semtech Corporation |
| Product Status | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 16.7V | 27.4V | 114V | 22.8V | 16.7V | 25.1V | 11.4V | 13.7V | 15.2V |
| Voltage - Breakdown (Min) | 20.9V | 34.2V | 142.5V | 28.5V | 19.86V | 31.4V | 14.25V | 17.1V | 19V |
| Voltage - Clamping (Max) @ Ipp | 30.5V | 49.9V | 206.3V | 41.6V | 32.03V | 45.7V | 21V | 25.1V | 27.7V |
| Current - Peak Pulse (10/1000µs) | 16.4A | 10A | 2.4A | 12A | 15.58A | 32.8A | 23.8A | 19.9A | 18A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W | 1500W (1.5kW) | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF | SQ-MELF, B | SQ-MELF, B | SQ-MELF |
| Supplier Device Package | - | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | - | B, SQ-MELF | B, SQ-MELF | - |
