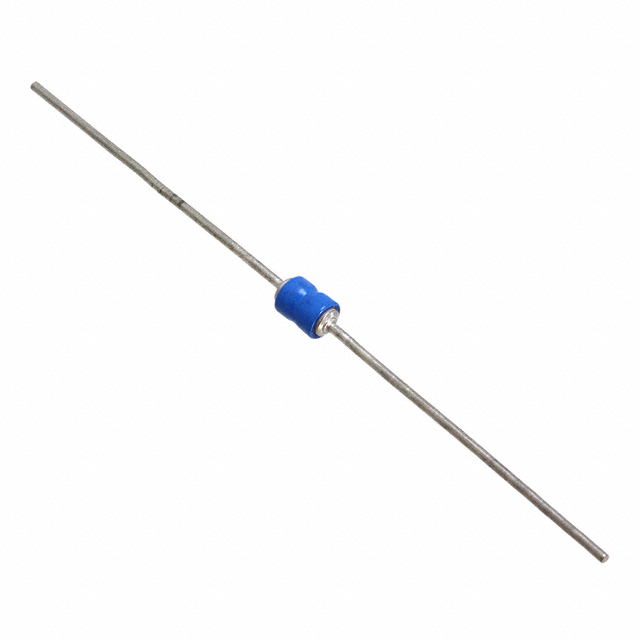

| Part Number | JANTX1N6112A | JANTX1N6116A | JANTX1N6114A | JANTX1N6152A | JANTX1N6118A |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 13.7V | 20.6V | 16.7V | 20.6V | 25.1V |
| Voltage - Breakdown (Min) | 17.1V | 25.7V | 20.9V | 25.7V | 31.4V |
| Voltage - Clamping (Max) @ Ipp | 25.1V | 37.4V | 30.5V | 37.4V | 45.7V |
| Current - Peak Pulse (10/1000µs) | 19.9A | 13.4A | 16.4A | 40.1A | 10.9A |
| Power - Peak Pulse | 500W | 500W | 500W | 1500W (1.5kW) | 500W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | B, Axial | B, Axial | B, Axial | G, Axial | B, Axial |
| Supplier Device Package | Axial | - | - | C, Axial | - |
