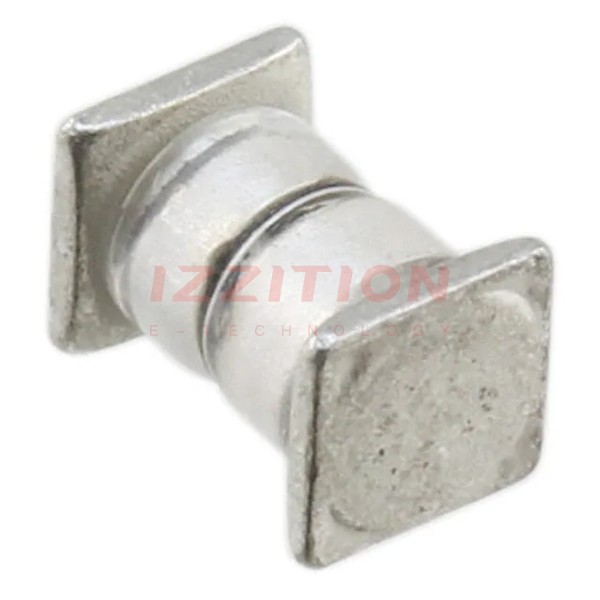

| Part Number | JANTX1N6106AUS | JANTX1N6106US | JANTX1N6136AUS | JANTX1N6105AUS |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 7.6V | 7.6V | 136.8V | 6.9V |
| Voltage - Breakdown (Min) | 9.5V | 9.03V | 171V | 8.65V |
| Voltage - Clamping (Max) @ Ipp | 14.5V | 15.23V | 245.7V | 13.4V |
| Current - Peak Pulse (10/1000µs) | 34.5A | 32.78A | 2A | 37.3A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF |
