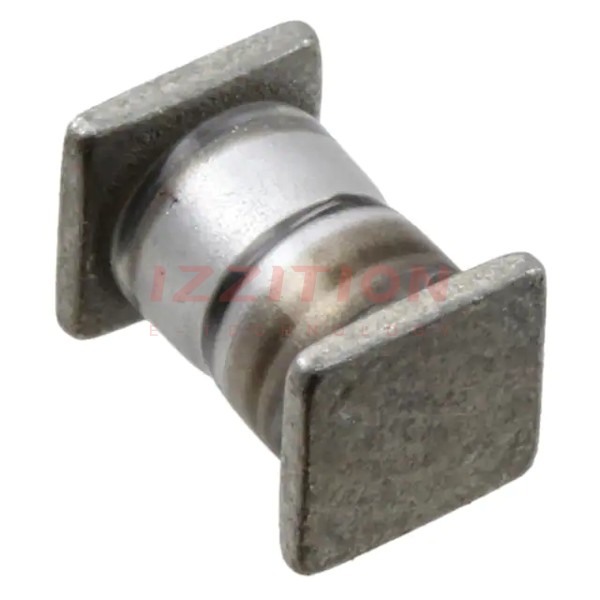

| Part Number | JANTX1N5807US/TR | JANTX1N5809US/TR | JANTX1N5802US/TR | JANTX1N5804US/TR | JANTX1N5806US/TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 100 V | 50 V | 100 V | 150 V |
| Current - Average Rectified (Io) | 3A | 3A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 4 A | 875 mV @ 4 A | 875 mV @ 1 A | 875 mV @ 1 A | 975 mV @ 2.5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 30 ns | 25 ns | 25 ns | 25 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V | 5 µA @ 100 V | 1 µA @ 50 V | 1 µA @ 100 V | 1 µA @ 150 V |
| Capacitance @ Vr, F | 60pF @ 10V, 1MHz | 60pF @ 10V, 1MHz | 25pF @ 10V, 1MHz | 25pF @ 10V, 1MHz | 25pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | D-5A | D-5A | D-5A |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
