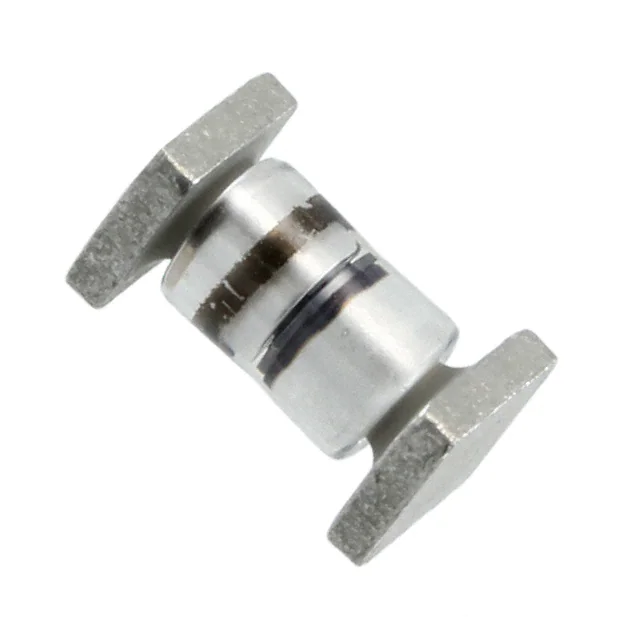

| Part Number | JANTX1N5621US/TR | JANTX1N5623US/TR | JANTX1N5622US/TR | JANTX1N6621US/TR | JANTX1N5620US/TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V | 1000 V | 1000 V | 440 V | 800 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 2A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 3 A | 1.6 V @ 3 A | 1.3 V @ 3 A | 1.4 V @ 1.2 A | 1.3 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns | 500 ns | 2 µs | 30 ns | 2 µs |
| Current - Reverse Leakage @ Vr | 500 nA @ 800 V | 500 nA @ 1 V | 500 nA @ 1 V | 500 nA @ 440 V | 500 nA @ 800 V |
| Capacitance @ Vr, F | 20pF @ 12V, 1MHz | 15pF @ 12V, 1MHz | - | 10pF @ 10V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | D-5A | D-5A | D-5A | D-5A | D-5A |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 150°C | -65°C ~ 175°C |
