Please send RFQ , we will respond immediately.

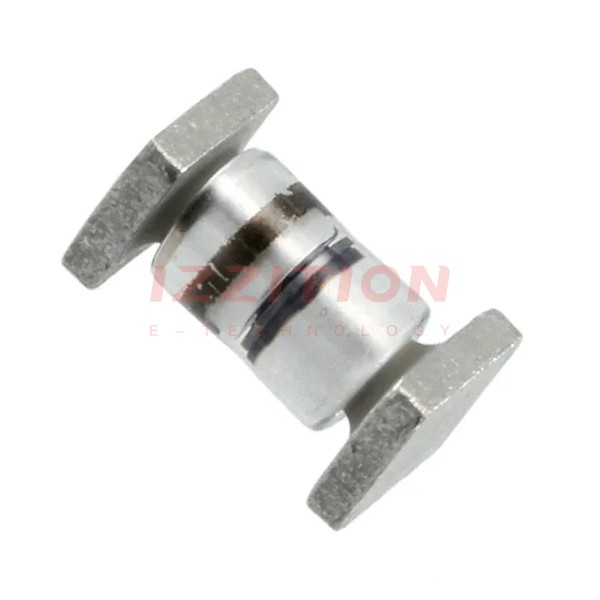

| Part Number | JANTX1N5618US/TR | JANTX1N5619US/TR | JANTX1N5418US/TR | JANTX1N5614US/TR | JANTX1N5615US/TR | JANTX1N5616US/TR | JANTX1N5617US/TR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 400 V | 200 V | 200 V | 400 V | 400 V |
| Current - Average Rectified (Io) | 1A | 1A | 3A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A | 1.6 V @ 3 A | 1.5 V @ 9 A | 1.3 V @ 3 A | 1.6 V @ 3 A | 1.3 V @ 3 A | 1.6 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | 250 ns | 150 ns | 2 µs | 150 ns | 2 µs | 150 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 600 V | 500 nA @ 600 V | 2 µA @ 400 V | 500 nA @ 200 V | - | 500 nA @ 400 V | 500 µA @ 400 V |
| Capacitance @ Vr, F | - | 25pF @ 12V, 1MHz | - | - | - | - | 35pF @ 12V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, B | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | D-5A | D-5A | D-5B | D-5A | A, SQ-MELF | D-5A | D-5A |
| Operating Temperature - Junction | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 175°C |
