Microchip Technology-JANTX1N5616US - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	JANTX1N5616US	JANTX1N5617US	JANTX1N5618US	JANTX1N5619US	JANTX1N5614US
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	400 V	400 V	600 V	600 V	200 V
Current - Average Rectified (Io)	1A	1A	1A	1A	1A
Voltage - Forward (Vf) (Max) @ If	1.3 V @ 3 A	1.6 V @ 3 A	1.3 V @ 3 A	1.6 V @ 3 A	1.3 V @ 3 A
Speed	Standard Recovery >500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2 µs	150 ns	2 µs	250 ns	2 µs
Current - Reverse Leakage @ Vr	500 nA @ 400 V	500 µA @ 400 V	500 nA @ 600 V	500 nA @ 600 V	500 nA @ 200 V
Capacitance @ Vr, F	-	35pF @ 12V, 1MHz	-	25pF @ 12V, 1MHz	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A
Supplier Device Package	D-5A	D-5A	D-5A	D-5A	D-5A
Operating Temperature - Junction	-65°C ~ 200°C	-65°C ~ 175°C	-65°C ~ 200°C	-65°C ~ 175°C	-65°C ~ 200°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 3 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	2 µs
Current - Reverse Leakage @ Vr:	500 nA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	SQ-MELF, A
Supplier Device Package:	D-5A
Operating Temperature - Junction:	-65°C ~ 200°C

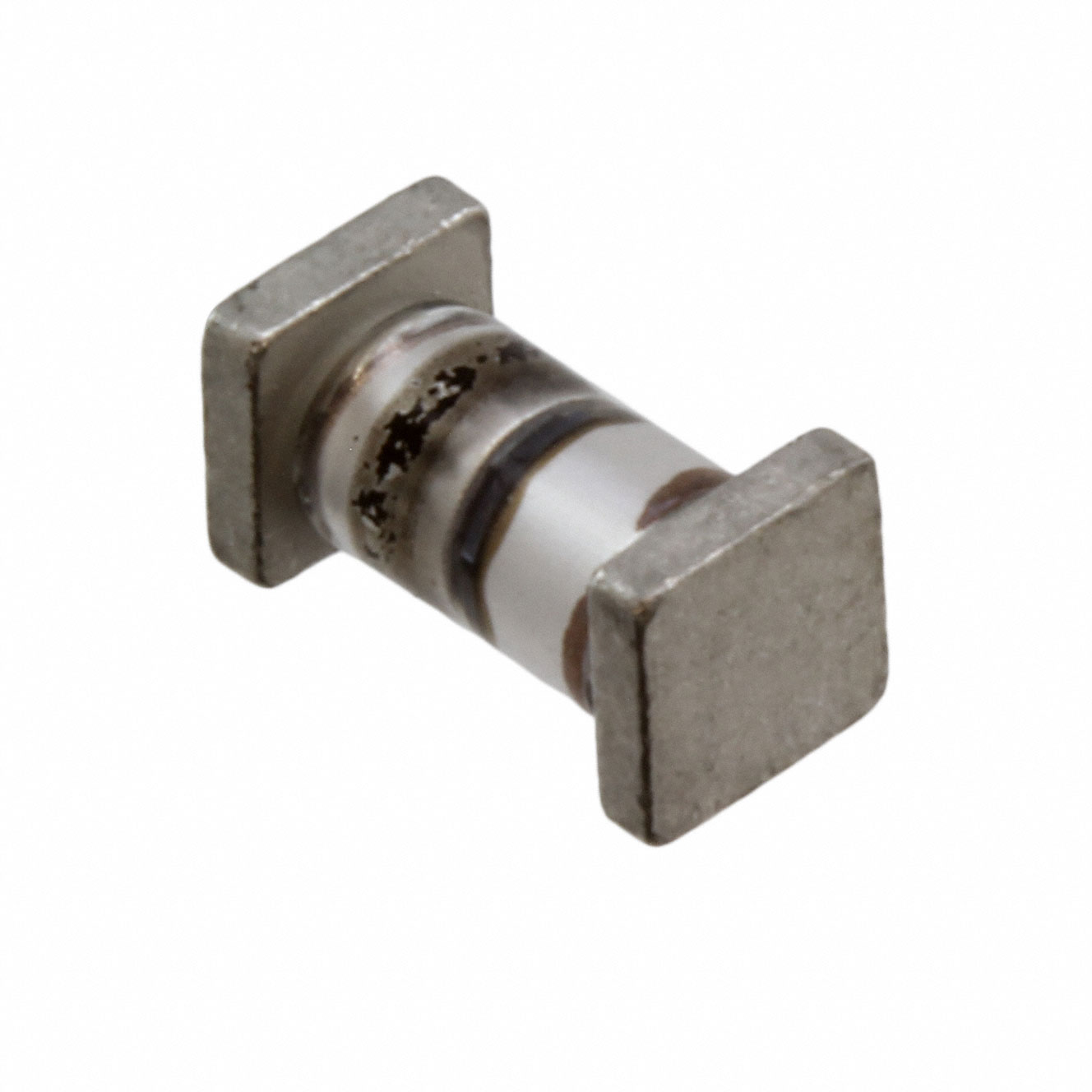

Microchip Technology JANTX1N5616US
