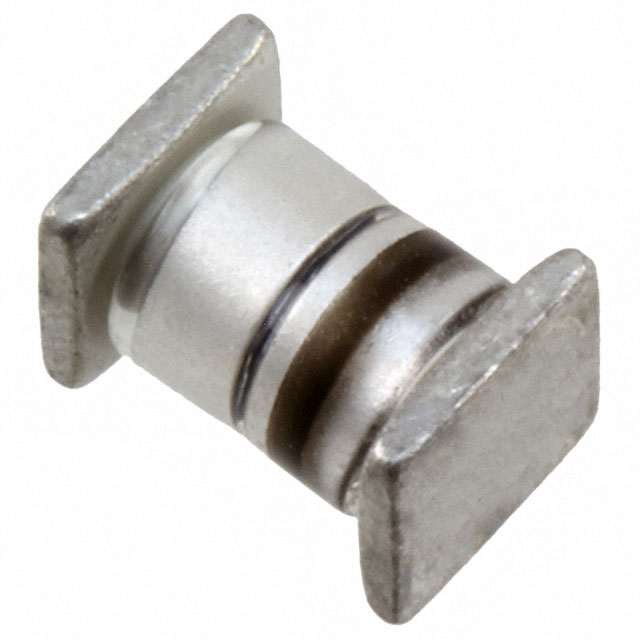

| Part Number | JANTX1N5551US | JANTX1N5552US | JANTX1N5550US |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 600 V | 200 V |
| Current - Average Rectified (Io) | 5A | 5A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 9 A | 1.2 V @ 9 A | 1.2 V @ 9 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | 2 µs | 2 µs |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V | 1 µA @ 600 V | 1 µA @ 200 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
