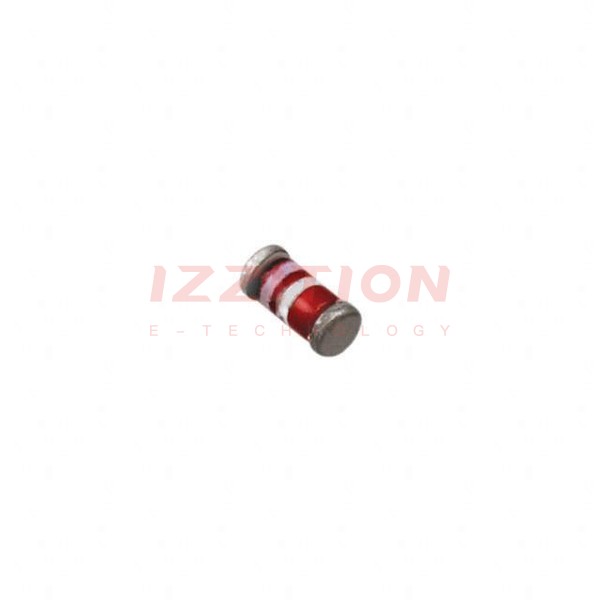

| Part Number | JANTX1N5543DUR-1 | JANTX1N5544DUR-1 | JANTX1N5545DUR-1 | JANTX1N5546DUR-1 | JANTX1N5540DUR-1 | JANTX1N5541DUR-1 | JANTX1N5542DUR-1 | JANTX1N5543BUR-1 | JANTX1N5543CUR-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 25 V | 28 V | 30 V | 33 V | 20 V | 22 V | 24 V | 25 V | 25 V |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms |
| Current - Reverse Leakage @ Vr | 10 nA @ 22.4 V | 10 nA @ 25.2 V | 10 nA @ 27 V | 10 nA @ 29.7 V | 10 nA @ 18 V | 10 nA @ 19.8 V | 10 nA @ 21.6 V | 10 nA @ 22.4 V | 10 nA @ 22.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
