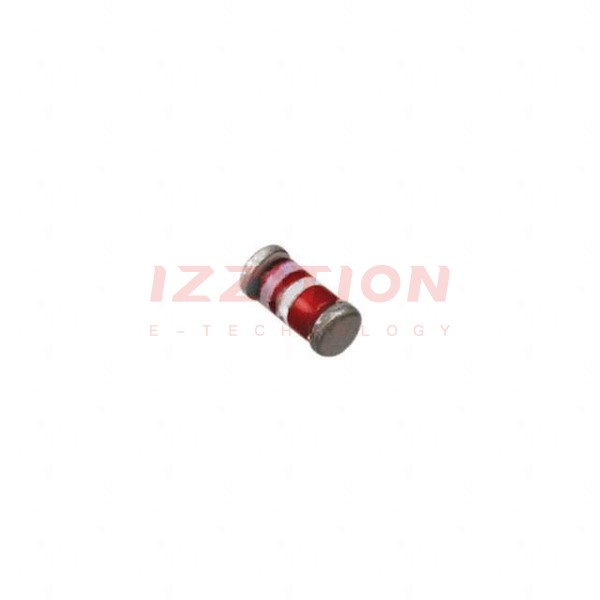

| Part Number | JANTX1N5531DUR-1 | JANTX1N5533DUR-1 | JANTX1N5534DUR-1 | JANTX1N5536DUR-1 | JANTX1N5537DUR-1 | JANTX1N5538DUR-1 | JANTX1N5539DUR-1 | JANTX1N5535DUR-1 | JANTX1N5532DUR-1 | JANTX1N5530DUR-1 | JANTX1N5531BUR-1 | JANTX1N5531CUR-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Voltage - Zener (Nom) (Vz) | 11 V | 13 V | 14 V | 16 V | 17 V | 18 V | 19 V | 15 V | 12 V | 10 V | 11 V | 11 V |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 80 Ohms | 90 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 90 Ohms | 60 Ohms | 80 Ohms | 80 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 9.9 V | 10 nA @ 11.7 V | 10 nA @ 12.6 V | 10 nA @ 14.4 V | 10 nA @ 15.3 V | 10 nA @ 16.2 V | 10 nA @ 17.1 V | 10 nA @ 13.5 V | 50 nA @ 10.8 V | 50 nA @ 9.1 V | 50 nA @ 9.9 V | 50 nA @ 9.9 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
