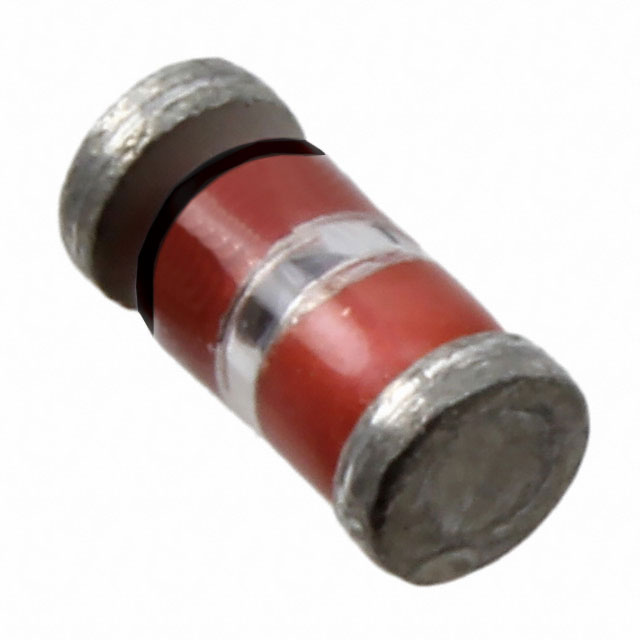

| Part Number | JANTX1N5284UR-1 | JANTX1N5285UR-1 | JANTX1N5287UR-1 | JANTX1N5289UR-1 | JANTX1N5294UR-1 | JANTXV1N5284UR-1 |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Anode - Cathode (Vak)(Max) | 100V | 100V | 100V | 100V | 100V | 100V |
| Regulator Current (Max) | 264µA | 297µA | 363µA | 473µA | 825µA | 264µA |
| Voltage - Limiting (Max) | 1V | 1V | 1V | 1.05V | 1.2V | 1V |
| Power - Max | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW |
| Applications | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) |
| Supplier Device Package | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) |
