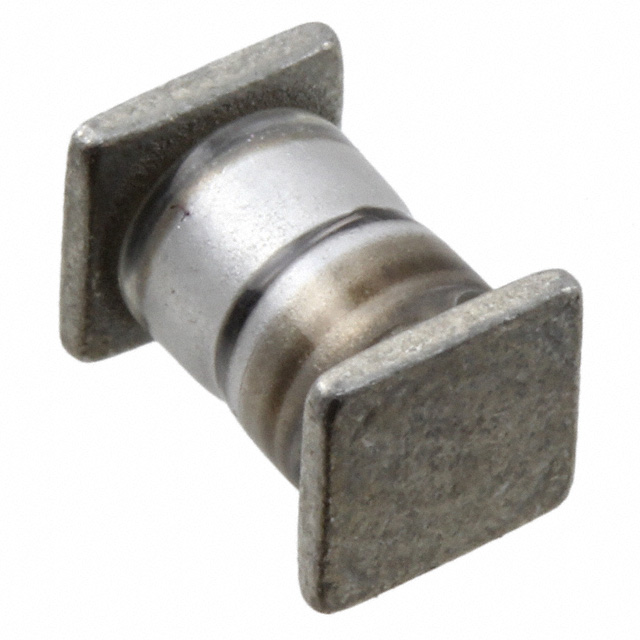

| Part Number | JANTX1N4970US | JANTX1N4977US | JANTX1N4972US | JANTX1N4975US | JANTX1N4976US | JANTX1N4978US | JANTX1N4980US | JANTX1N4973US | JANTX1N4971US | JANTX1N4960US | JANTX1N4970CUS | JANTX1N4970DUS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microsemi Corporation | Microsemi Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 33 V | 62 V | 39 V | 51 V | 56 V | 68 V | 82 V | 43 V | 36 V | 12 V | 33 V | 33 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% | ±1% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 10 Ohms | 42 Ohms | 14 Ohms | 27 Ohms | 35 Ohms | 50 Ohms | 80 Ohms | 20 Ohms | 11 Ohms | 2.5 Ohms | 10 Ohms | 10 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 25.1 V | 2 µA @ 47.1 V | 2 µA @ 29.7 V | 2 µA @ 38.8 V | 2 µA @ 42.6 V | 2 µA @ 51.7 V | 2 µA @ 62.2 V | 2 µA @ 32.7 V | 2 µA @ 27.4 V | 10 µA @ 9.1 V | 2 µA @ 25.1 V | 2 µA @ 25.1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B |
