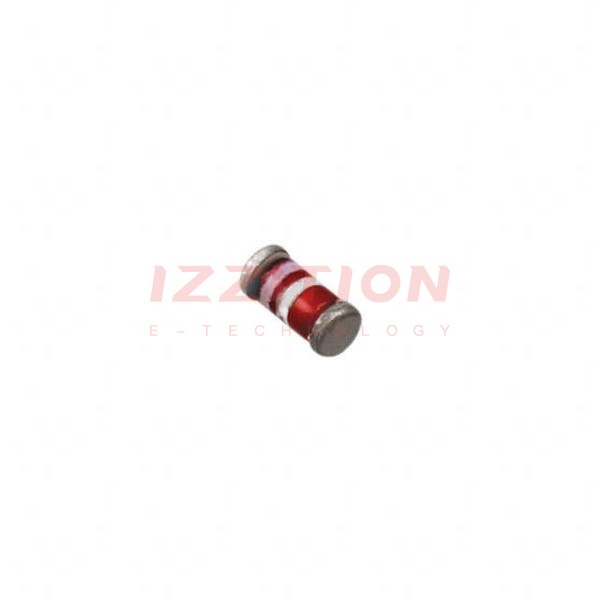

| Part Number | JANTX1N4621UR-1 | JANTX1N4627UR-1 | JANTX1N4625UR-1 | JANTX1N4622UR-1 | JANTX1N4623UR-1 | JANTX1N4624UR-1 | JANTX1N4620UR-1 | JANTX1N4621CUR-1 | JANTX1N4621DUR-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | MACOM Technology Solutions | Microchip Technology | Microchip Technology | Microchip Technology | MACOM Technology Solutions | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key | Active | Active | Active | Discontinued at Digi-Key | Active | Active |
| Voltage - Zener (Nom) (Vz) | 3.6 V | 6.2 V | 5.1 V | 3.9 V | 4.3 V | 4.7 V | 3.3 V | 3.6 V | 3.6 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% | ±1% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 1.7 kOhms | 1.2 kOhms | 1.5 kOhms | 1.65 kOhms | 1.6 kOhms | 1.55 kOhms | 1.65 kOhms | 1.7 kOhms | 1.7 kOhms |
| Current - Reverse Leakage @ Vr | 3.5 µA @ 2 V | 5 µA @ 5 V | 10 µA @ 3 V | 2.5 µA @ 2 V | 4 µA @ 2 V | 10 µA @ 3 V | 7.5 µA @ 1.5 V | 3.5 µA @ 2 V | 3.5 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | - | - | - |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | - | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | - | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
