Microchip Technology-JANTX1N4500 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io):	-
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 300 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	6 ns
Current - Reverse Leakage @ Vr:	100 nA @ 75 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-204AH, DO-35, Axial
Supplier Device Package:	DO-35
Operating Temperature - Junction:	-65°C ~ 175°C

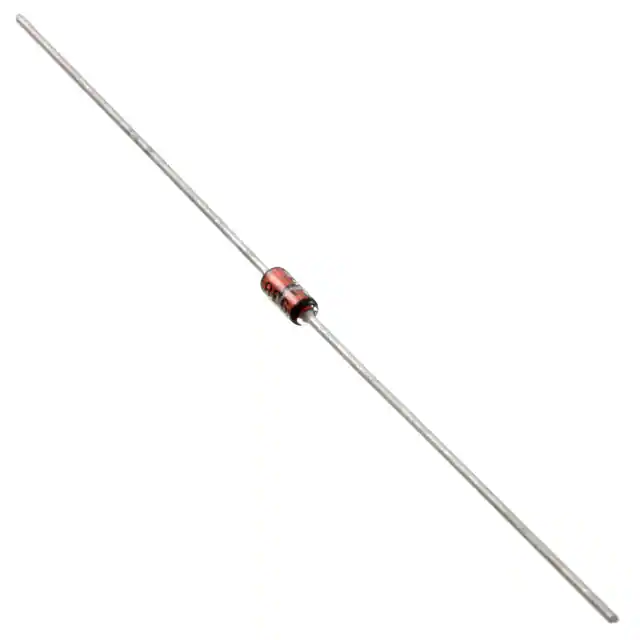

Microchip Technology JANTX1N4500
