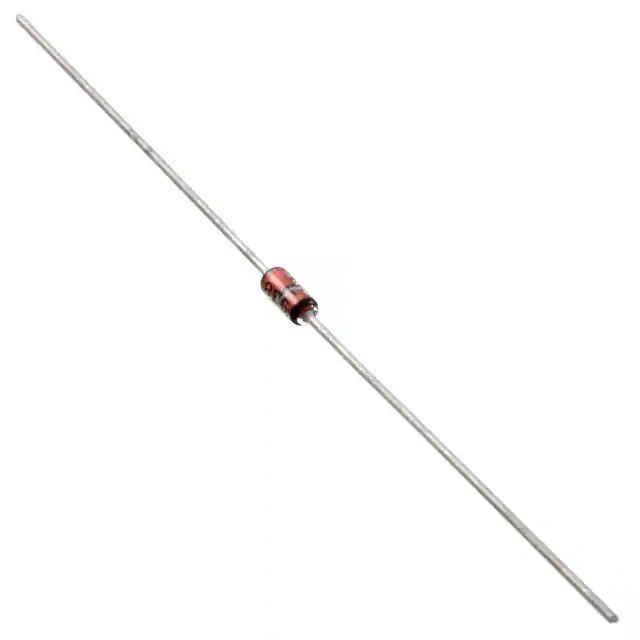

| Part Number | JANTX1N4116-1/TR | JANTX1N4119-1/TR | JANTX1N4118-1/TR | JANTX1N4117-1/TR | JANTX1N4116C-1/TR | JANTX1N4116D-1/TR | JANTX1N4110-1/TR | JANTX1N4111-1/TR | JANTX1N4112-1/TR | JANTX1N4113-1/TR | JANTX1N4114-1/TR | JANTX1N4115-1/TR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 24 V | 28 V | 27 V | 25 V | 24 V | 24 V | 16 V | 17 V | 18 V | 19 V | 20 V | 22 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±2% | ±1% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 150 Ohms | 200 Ohms | 150 Ohms | 150 Ohms | 150 Ohms | 150 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 150 Ohms | 150 Ohms | 150 Ohms |
| Current - Reverse Leakage @ Vr | 10 nA @ 18.3 V | 10 nA @ 21.3 V | 10 nA @ 20.5 V | 10 nA @ 19 V | 10 nA @ 18.3 V | 10 nA @ 18.3 V | 50 nA @ 12.15 V | 50 nA @ 13 V | 50 nA @ 13.7 V | 50 nA @ 14.5 V | 10 nA @ 15.2 V | 10 nA @ 16.8 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 | DO-35 (DO-204AH) | DO-35 | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 |
