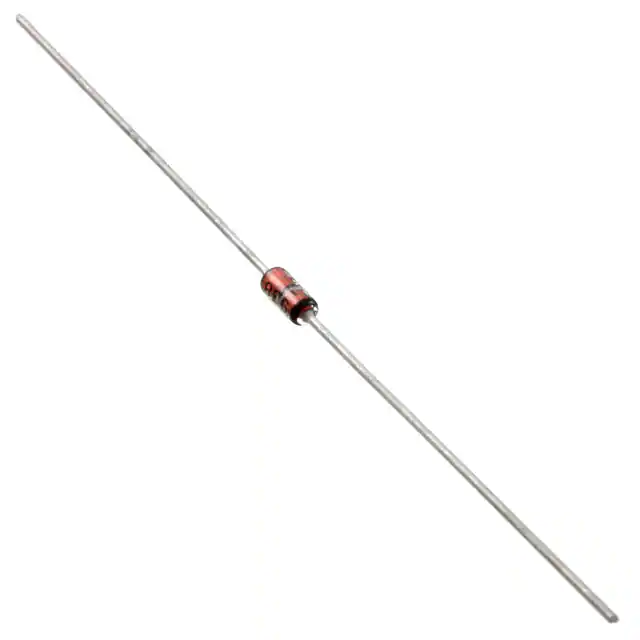

| Part Number | JANTX1N4106D-1/TR | JANTX1N4109D-1/TR | JANTX1N4107D-1/TR | JANTX1N4108D-1/TR | JANTX1N4100D-1/TR | JANTX1N4101D-1/TR | JANTX1N4102D-1/TR | JANTX1N4103D-1/TR | JANTX1N4104D-1/TR | JANTX1N4105D-1/TR | JANTX1N4106-1/TR | JANTX1N4106C-1/TR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 12 V | 15 V | 13 V | 14 V | 7.5 V | 8.2 V | 8.7 V | 9.1 V | 10 V | 11 V | 12 V | 12 V |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 200 Ohms | 100 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 9.2 V | 50 nA @ 11.4 V | 50 nA @ 9.9 V | 50 nA @ 10.7 V | 1 µA @ 5.7 V | 500 nA @ 6.3 V | 500 nA @ 6.7 V | 500 nA @ 7 V | 500 nA @ 7.6 V | 50 nA @ 8.5 V | 50 nA @ 9.2 V | 50 nA @ 9.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 | DO-35 (DO-204AH) |
