Microchip Technology-JANTX1N3164 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	300A
Voltage - Forward (Vf) (Max) @ If:	1.55 V @ 940 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	10 mA @ 200 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis, Stud Mount
Package / Case:	DO-205AB, DO-9, Stud
Supplier Device Package:	DO-205AB, DO-9
Operating Temperature - Junction:	-65°C ~ 200°C

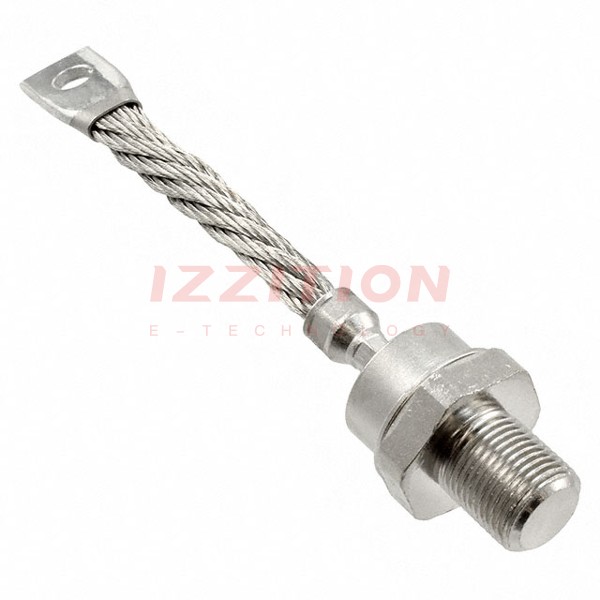

Microchip Technology JANTX1N3164
