Please send RFQ , we will respond immediately.

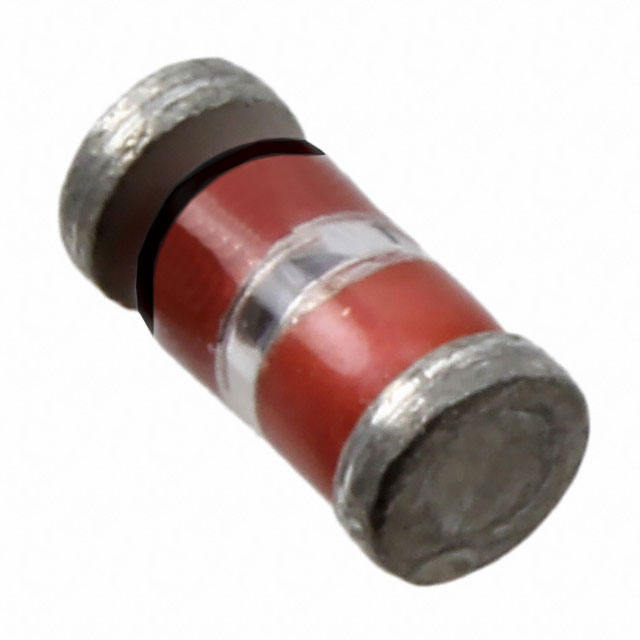

| Part Number | JANTX1N3028CUR-1 | JANTX1N3029CUR-1 | JANTX1N3028DUR-1 | JANTX1N3020CUR-1 | JANTX1N3021CUR-1 | JANTX1N3022CUR-1 | JANTX1N3023CUR-1 | JANTX1N3024CUR-1 | JANTX1N3025CUR-1 | JANTX1N3026CUR-1 | JANTX1N3027CUR-1 | JANTX1N3028BUR-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 22 V | 24 V | 22 V | 10 V | 11 V | 12 V | 13 V | 15 V | 16 V | 18 V | 20 V | 22 V |
| Tolerance | ±2% | ±2% | ±1% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±5% |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 23 Ohms | 25 Ohms | 23 Ohms | 7 Ohms | 8 Ohms | 9 Ohms | 10 Ohms | 14 Ohms | 16 Ohms | 20 Ohms | 22 Ohms | 23 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 16.7 V | 10 µA @ 18.2 V | 10 µA @ 16.7 V | 25 µA @ 7.6 V | 10 µA @ 8.4 V | 10 µA @ 9.1 V | 10 µA @ 9.9 V | 10 µA @ 11.4 V | 10 µA @ 12.2 V | 10 µA @ 13.7 V | 10 µA @ 15.2 V | 10 µA @ 16.7 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) |
| Supplier Device Package | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) |
