Microchip Technology-JANSR2N3440 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	250 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 4mA, 50mA
Current - Collector Cutoff (Max):	2µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	40 @ 20mA, 10V
Power - Max:	-
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole

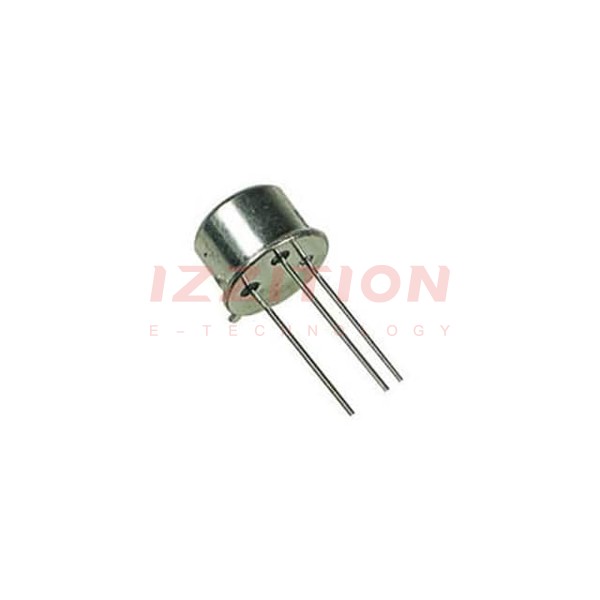

Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39 (TO-205AD)

Microchip Technology JANSR2N3440
