Microchip Technology-JANSR2N3057A - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	10nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	50 @ 500mA, 10V
Power - Max:	500 mW
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-206AB, TO-46-3 Metal Can
Supplier Device Package:	TO-46

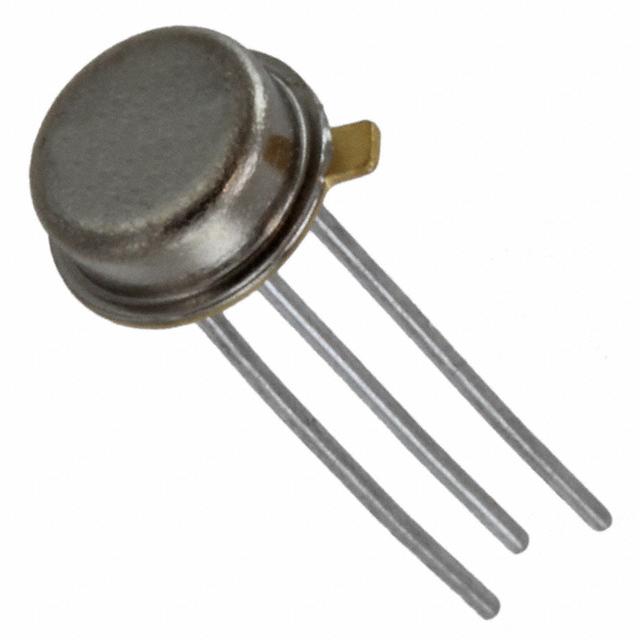

Microchip Technology JANSR2N3057A
