Please send RFQ , we will respond immediately.

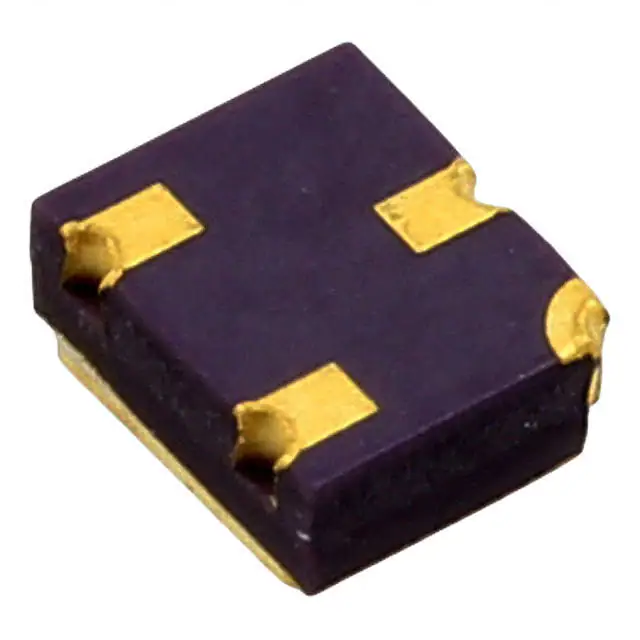

| Part Number | JANSD2N3700UB/TR | JANSM2N3700UB/TR | JANSL2N3700UB/TR | JANSP2N3700UB/TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 1 A | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 80 V | 80 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA | 10nA | 10nA | 10nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 100 @ 150mA, 10V |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW |
| Frequency - Transition | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, No Lead | 3-SMD, No Lead | 3-SMD, No Lead | 3-SMD, No Lead |
| Supplier Device Package | UB | UB | UB | UB |
