| Part Number | JANSD2N2369AUA/TR | JANSD2N2369AUB/TR | JANSR2N2369AUA/TR | JANSM2N2369AUA/TR | JANSP2N2369AUA/TR | JANSL2N2369AUA/TR | JANS2N2369AUA/TR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | - | - | - | - | - | - | 400 nA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V | 20 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| Vce Saturation (Max) @ Ib, Ic | 450mV @ 10mA, 100mA | 450mV @ 10mA, 100mA | 450mV @ 10mA, 100mA | 450mV @ 10mA, 100mA | 450mV @ 10mA, 100mA | 450mV @ 10mA, 100mA | 450mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 400nA | 400nA | 400nA | 400nA | 400nA | 400nA | 400nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 100mA, 1V | 20 @ 100mA, 1V | 20 @ 100mA, 1V | 20 @ 100mA, 1V | 20 @ 100mA, 1V | 20 @ 100mA, 1V | 40 @ 10mA, 1V |
| Power - Max | 360 mW | 360 mW | 360 mW | 360 mW | 360 mW | 360 mW | 360 mW |
| Frequency - Transition | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

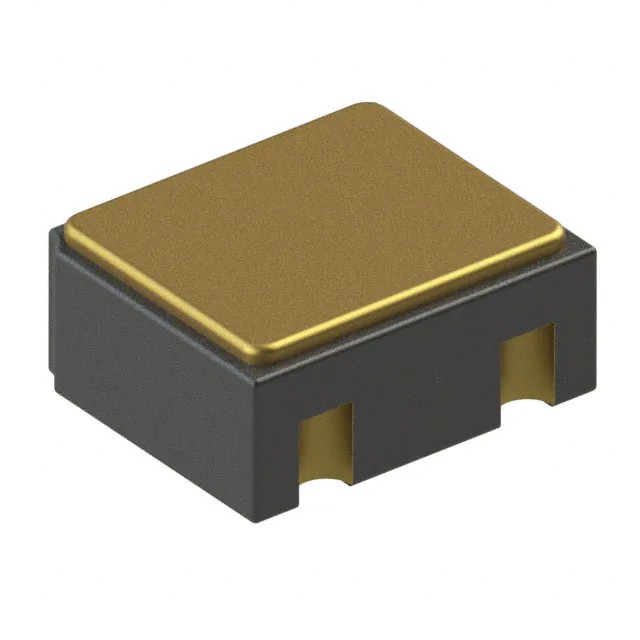

| Package / Case | 4-SMD, No Lead | 3-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Supplier Device Package | UA | UB | UA | UA | UA | UA | UA |
