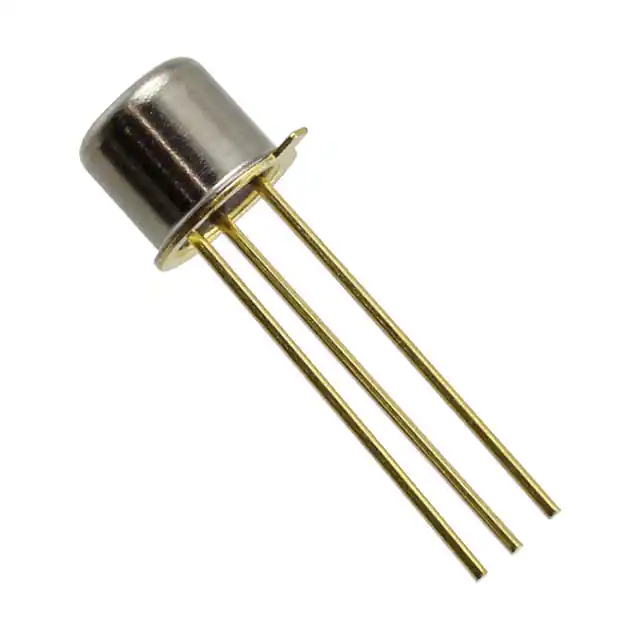

Microchip Technology-JANS2N930 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	30 mA
Voltage - Collector Emitter Breakdown (Max):	45 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 500µA, 10mA
Current - Collector Cutoff (Max):	2nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 10µA, 5V
Power - Max:	300 mW
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-206AA, TO-18-3 Metal Can
Supplier Device Package:	TO-18 (TO-206AA)

Microchip Technology JANS2N930
