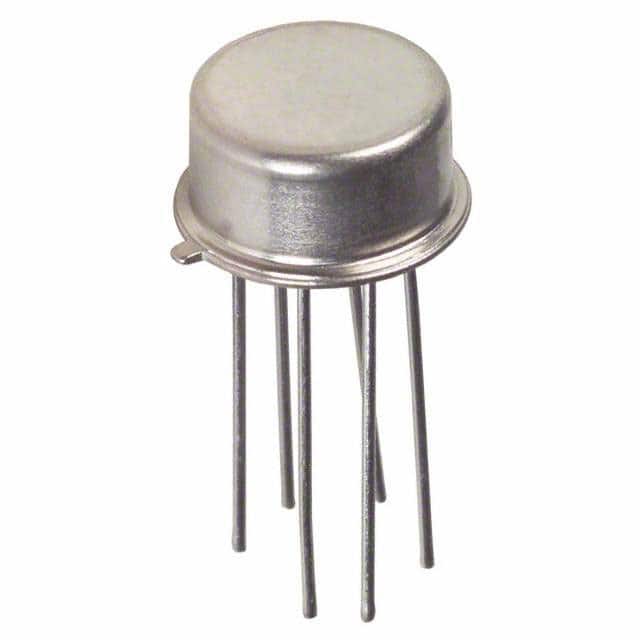

| Part Number | JANS2N3810 | JANS2N3810L | JANSR2N3810 | JANSF2N3810 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Transistor Type | 2 PNP (Dual) | 2 PNP (Dual) | 2 PNP (Dual) | 2 PNP (Dual) |
| Current - Collector (Ic) (Max) | 50mA | 50mA | 50mA | 50mA |
| Voltage - Collector Emitter Breakdown (Max) | 60V | 60V | 60V | 60V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100µA, 1mA | 250mV @ 100µA, 1mA | 250mV @ 100µA, 1mA | 250mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 1mA, 5V | 150 @ 1mA, 5V | 150 @ 1mA, 5V | 150 @ 1mA, 5V |
| Power - Max | 350mW | 350mW | 350mW | 350mW |
| Frequency - Transition | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-78-6 Metal Can | TO-78-6 Metal Can | TO-78-6 Metal Can | TO-78-6 Metal Can |
| Supplier Device Package | TO-78-6 | TO-78-6 | TO-78-6 | TO-78-6 |
