Please send RFQ , we will respond immediately.

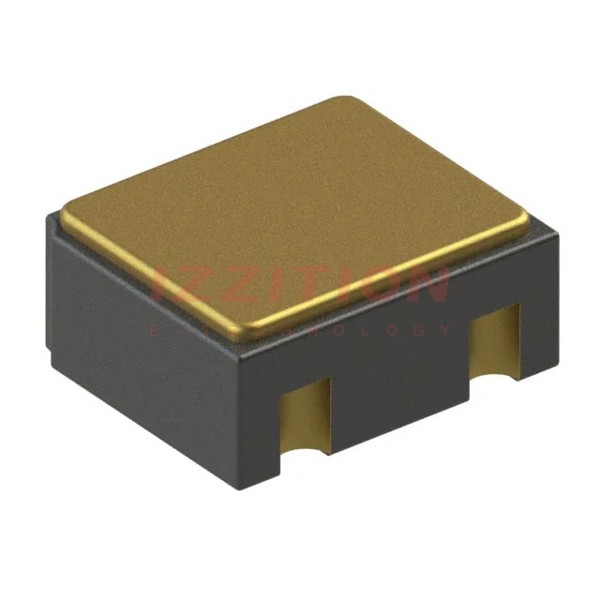

| Part Number | JANS2N2222AUA/TR | JANS2N2222AUB/TR | JANSD2N2222AUA/TR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 800 mA | 800 mA | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA | 1V @ 50mA, 500mA | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 50nA | 50nA | 50nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 100 @ 150mA, 10V |
| Power - Max | 650 mW | 500 mW | 650 mW |
| Frequency - Transition | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Supplier Device Package | UA | UB | UA |
