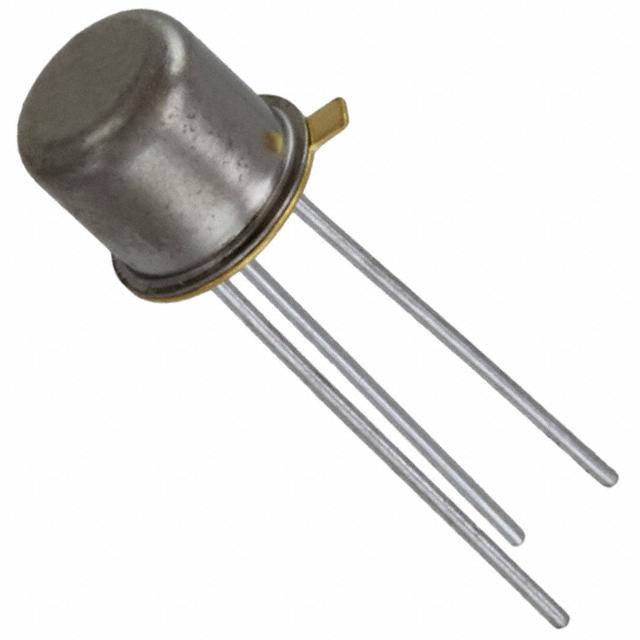

| Part Number | JANS2N2222A | JANS2N2222AL |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 800 mA | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 50nA | 50nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | 100 @ 150mA, 10V |
| Power - Max | 500 mW | 500 mW |
| Frequency - Transition | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-206AA, TO-18-3 Metal Can | TO-206AA, TO-18-3 Metal Can |
| Supplier Device Package | TO-18 (TO-206AA) | TO-18 (TO-206AA) |
