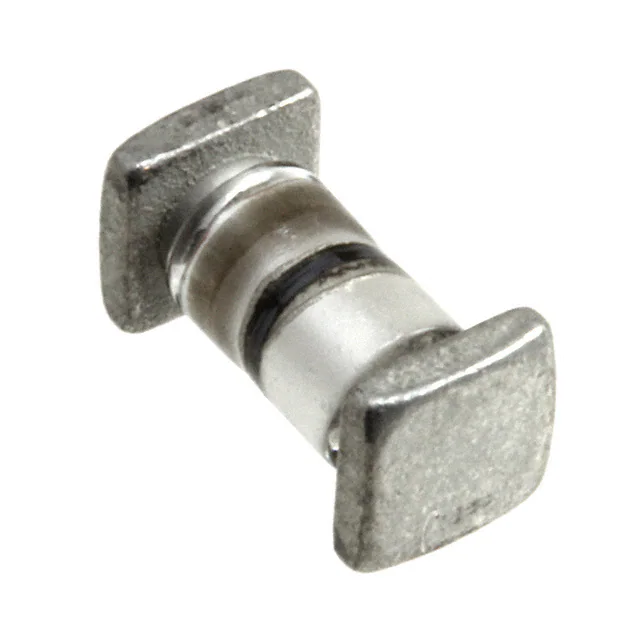

| Part Number | JANS1N6638US/TR | JANS1N6639US/TR | JANS1N6638U/TR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 125 V | 75 V | 125 V |
| Current - Average Rectified (Io) | 300mA | 300mA | 300mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.2 V @ 500 mA | 1.1 V @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4.5 ns | 4 ns | 4.5 ns |
| Current - Reverse Leakage @ Vr | - | 100 nA @ 75 V | 500 nA @ 150 V |
| Capacitance @ Vr, F | - | - | 2.5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, D | SQ-MELF, E |
| Supplier Device Package | B, SQ-MELF | D-5D | D-5B |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
