Please send RFQ , we will respond immediately.

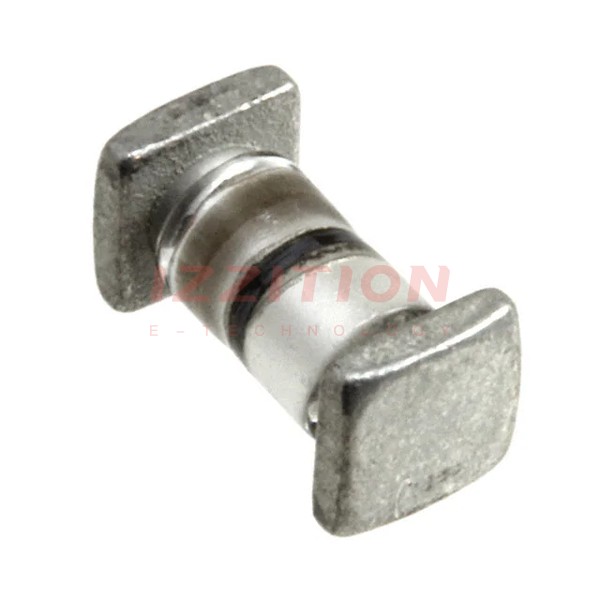

| Part Number | JANS1N6621US/TR | JANS1N6661US/TR | JANS1N5621US/TR | JANS1N6620US/TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 225 V | 800 V | 200 V |
| Current - Average Rectified (Io) | 1.2A | 500mA | 1A | 1.2A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 2 A | 1 V @ 400 mA | 1.6 V @ 3 A | 1.6 V @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns | - | 300 ns | 45 ns |
| Current - Reverse Leakage @ Vr | - | 50 nA @ 225 V | - | - |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | A, SQ-MELF | D-5A | A, SQ-MELF | A, SQ-MELF |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 150°C |
