Microchip Technology-JANS1N5811/TR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	150 V
Current - Average Rectified (Io):	6A
Voltage - Forward (Vf) (Max) @ If:	875 mV @ 4 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	30 ns
Current - Reverse Leakage @ Vr:	-
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	B, Axial
Supplier Device Package:	B, Axial
Operating Temperature - Junction:	-65°C ~ 175°C

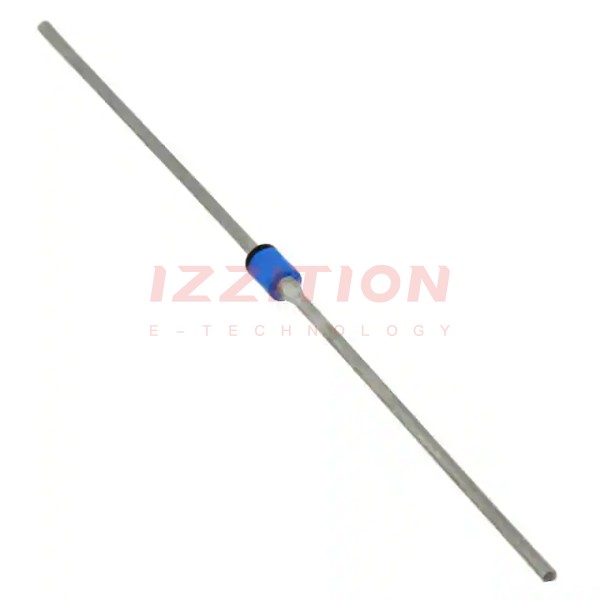

Microchip Technology JANS1N5811/TR
