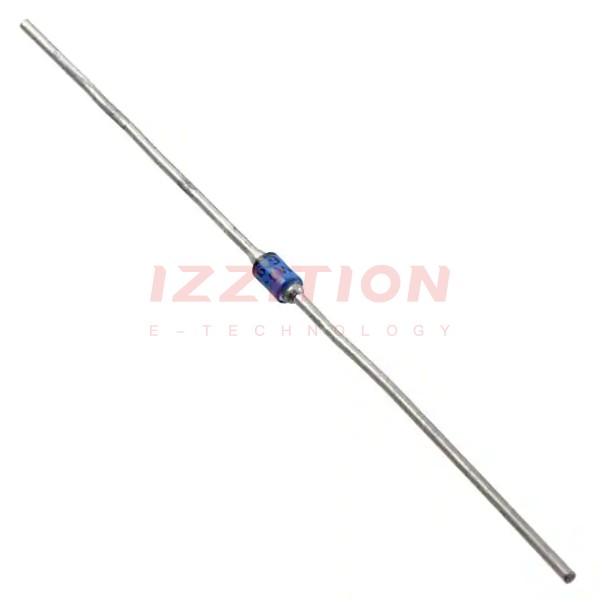

Microchip Technology-JANS1N5615 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.6 V @ 3 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	150 ns
Current - Reverse Leakage @ Vr:	500 nA @ 200 V
Capacitance @ Vr, F:	45pF @ 12V, 1MHz
Mounting Type:	Through Hole
Package / Case:	A, Axial
Supplier Device Package:	-
Operating Temperature - Junction:	-65°C ~ 175°C

Microchip Technology JANS1N5615
