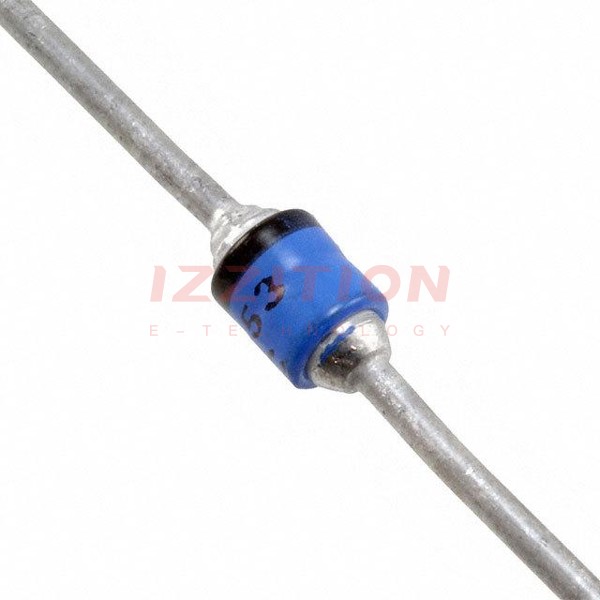

Microchip Technology-JANS1N5418 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	3A
Voltage - Forward (Vf) (Max) @ If:	1.5 V @ 9 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	150 ns
Current - Reverse Leakage @ Vr:	1 µA @ 400 V
Capacitance @ Vr, F:	165pF @ 4V
Mounting Type:	Through Hole
Package / Case:	B, Axial
Supplier Device Package:	-
Operating Temperature - Junction:	-65°C ~ 175°C

Microchip Technology JANS1N5418
