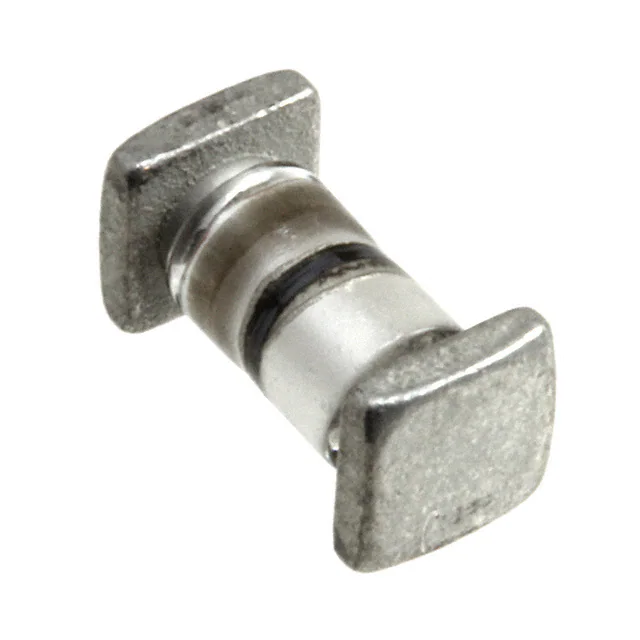

| Part Number | JANS1N4962US/TR | JANS1N4965US/TR | JANS1N4972US/TR | JANS1N4960US/TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 20 V | 39 V | 12 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 3.5 Ohms | 4.5 Ohms | 14 Ohms | 2.5 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 11.4 V | 2 µA @ 15.2 V | 2 µA @ 29.7 V | 10 µA @ 9.1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B |
