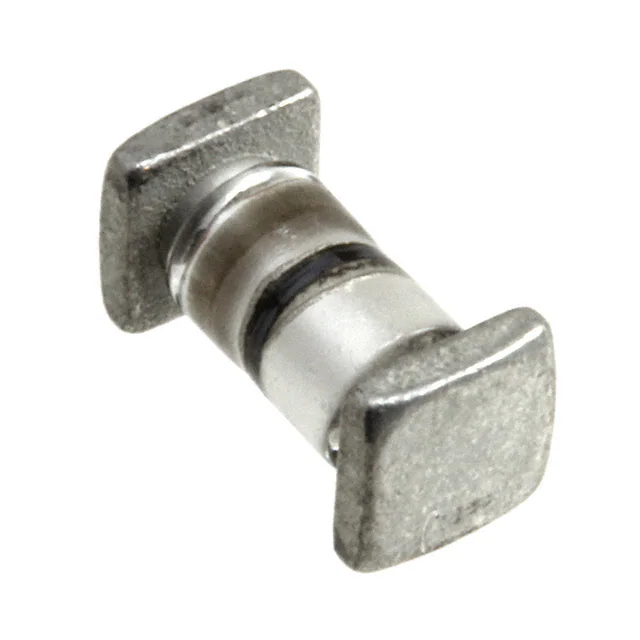

| Part Number | JANS1N4469US/TR | JANS1N4479US/TR | JANS1N4460US/TR | JANS1N4461US/TR | JANS1N4462US/TR | JANS1N4465US/TR | JANS1N4466US/TR | JANS1N4467US/TR | JANS1N4468US/TR | JANS1N4469CUS/TR |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 39 V | 6.2 V | 6.8 V | 7.5 V | 10 V | 11 V | 12 V | 13 V | 15 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% |
| Power - Max | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W |
| Impedance (Max) (Zzt) | 600 Ohms | 30 Ohms | 4 Ohms | 2.5 Ohms | 2.5 Ohms | 5 Ohms | 6 Ohms | 7 Ohms | 8 Ohms | 9 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 12 V | 50 nA @ 31.2 V | 10 µA @ 3.72 V | 5 µA @ 4.08 V | 1 µA @ 4.5 V | 300 nA @ 8 V | 300 nA @ 8.8 V | 200 nA @ 9.6 V | 50 nA @ 10.4 V | 50 nA @ 12 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | D-5A | A, SQ-MELF | A, SQ-MELF | A, SQ-MELF | A, SQ-MELF | A, SQ-MELF | A, SQ-MELF | D-5A | D-5A | A, SQ-MELF |
