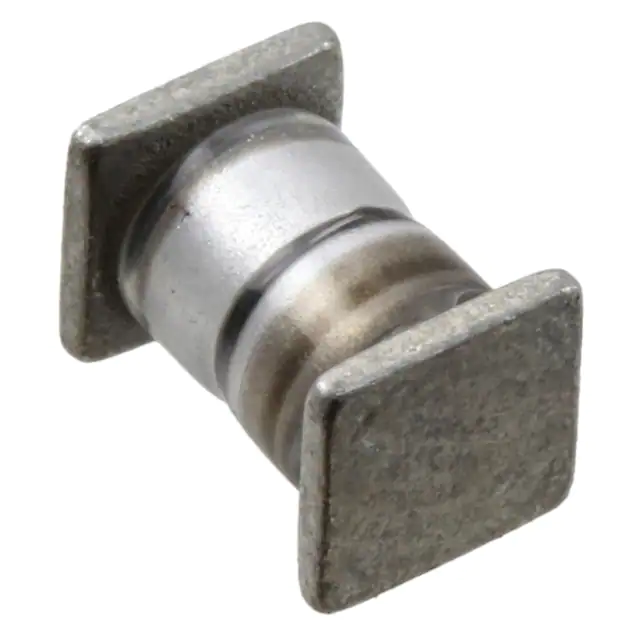

Microchip Technology-JANS1N3595US/TR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	-
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1 V @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	3 µs
Current - Reverse Leakage @ Vr:	1 nA @ 125 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	SQ-MELF, B
Supplier Device Package:	B, SQ-MELF
Operating Temperature - Junction:	-65°C ~ 150°C

Microchip Technology JANS1N3595US/TR
