| Part Number | JANKCA2N5238 | JANKCA2N5237 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 10 A | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 170 V | 120 V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 1A, 10A | 2.5V @ 1A, 10A |
| Current - Collector Cutoff (Max) | 10µA | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 1A, 5V | 50 @ 1A, 5V |
| Power - Max | 1 W | 1 W |
| Frequency - Transition | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

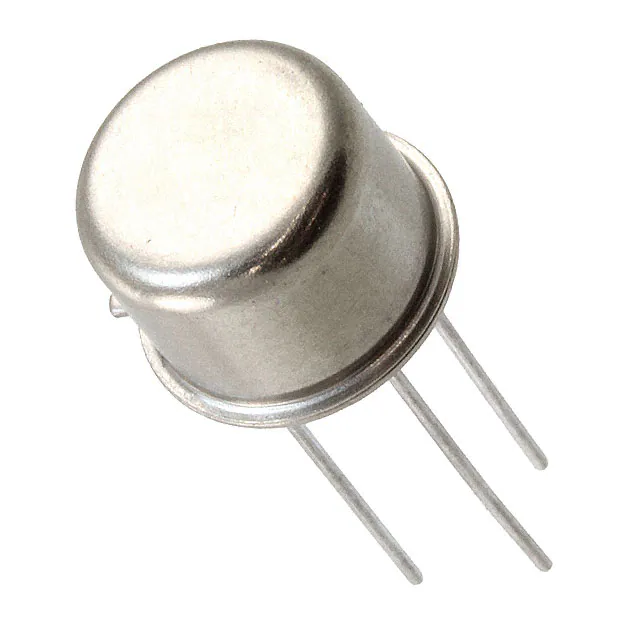

| Package / Case | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package | TO-5 | TO-5 |
