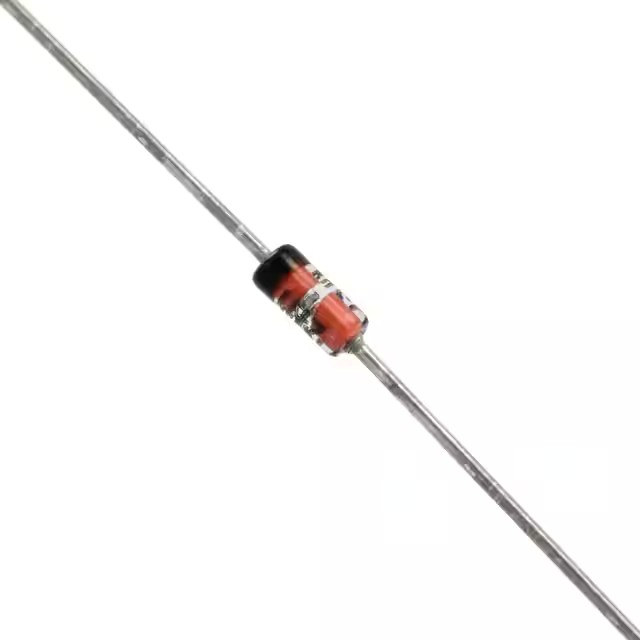

| Part Number | JANKCA1N5308 | JANKCA1N5309 | JANHCA1N5308 | JANKCA1N5300 | JANKCA1N5301 | JANKCA1N5302 | JANKCA1N5303 | JANKCA1N5304 | JANKCA1N5305 | JANKCA1N5306 | JANKCA1N5307 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 2.97A | 3.3A | 2.97A | 1.43A | 1.54A | 1.65A | 1.76A | 1.98A | 2.2A | 2.42A | 2.64A |
| Voltage - Forward (Vf) (Max) @ If | 2.15 V @ 2.16 A | 2.25 V @ 2.4 A | 2.15 V @ 2.16 A | 1.5 V @ 1.04 A | 1.55 V @ 1.12 A | 1.6 V @ 1.2 A | 1.65 V @ 1.28 A | 1.75 V @ 1.44 A | 1.85 V @ 1.6 A | 1.95 V @ 1.76 A | 2 V @ 1.92 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | - | - | - | - | - | - | - | - | - | - | - |
| Capacitance @ Vr, F | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial |
| Supplier Device Package | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
