Please send RFQ , we will respond immediately.

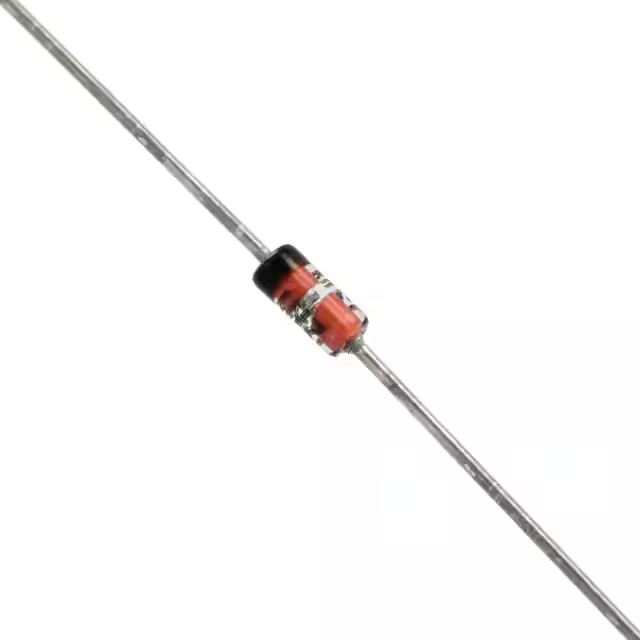

| Part Number | JANHCA1N5283 | JANHCA1N5286 | JANHCA1N5284 | JANHCA1N5287 | JANHCA1N5293 | JANHCA1N5285 | JANKCA1N5283 | JANHCA1N5288 | JANHCA1N5289 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 242mA | 330mA | 264mA | 363mA | 748mA | 297mA | 242mA | 429mA | 473mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 176 mA | 1 V @ 240 mA | 1 V @ 192 mA | 1 V @ 264 mA | 1.15 V @ 544 mA | 1 V @ 216 mA | 1 V @ 176 mA | 1.05 V @ 312 mA | 1.05 V @ 344 mA |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | - | - | - | - | - | - | - | - | - |
| Capacitance @ Vr, F | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial |
| Supplier Device Package | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
