| Part Number | JAN2N930 | JAN2N4930 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Transistor Type | NPN | PNP |
| Current - Collector (Ic) (Max) | 30 mA | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 200 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 500µA, 10mA | 1.2V @ 3mA, 30mA |
| Current - Collector Cutoff (Max) | 2nA | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10µA, 5V | 50 @ 30mA, 10V |
| Power - Max | 300 mW | 1 W |
| Frequency - Transition | - | - |
| Operating Temperature | -55°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

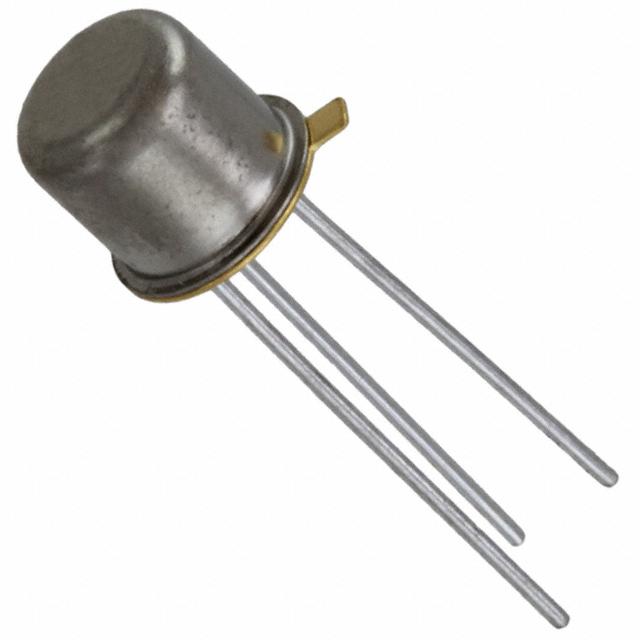

| Package / Case | TO-206AA, TO-18-3 Metal Can | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-18 | TO-39 (TO-205AD) |
