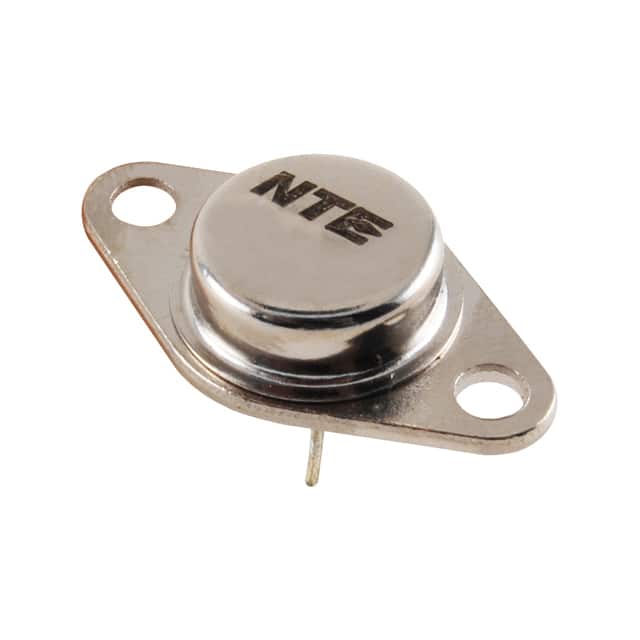

| Part Number | JAN2N3739 | JAN2N3439 | JAN2N3735 | JAN2N3737 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Discontinued at Digi-Key |
| Transistor Type | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 1 A | 1.5 A | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 300 V | 350 V | 40 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 25mA, 250mA | 500mV @ 4mA, 50mA | 900mV @ 100mA, 1A | 900mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100µA (ICBO) | 2µA | 10µA (ICBO) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 250mA, 10V | 40 @ 20mA, 10V | 20 @ 1A, 1.5V | 20 @ 1A, 1.5V |
| Power - Max | 20 W | 800 mW | 1 W | 500 mW |
| Frequency - Transition | - | - | - | - |
| Operating Temperature | -55°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-213AA, TO-66-2 | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-206AB, TO-46-3 Metal Can |
| Supplier Device Package | TO-66 (TO-213AA) | TO-39 (TO-205AD) | TO-39 | TO-46-3 |
