| Part Number | JAN2N3735L | JAN2N3635L | JAN2N3725L | JAN2N3735 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Transistor Type | NPN | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 1.5 A | 1 A | 500 mA | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 140 V | 50 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 900mV @ 100mA, 1A | 600mV @ 5mA, 50mA | - | 900mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 10µA | - | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 1A, 1.5V | 100 @ 50mA, 10V | - | 20 @ 1A, 1.5V |
| Power - Max | 1 W | 1 W | - | 1 W |
| Frequency - Transition | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

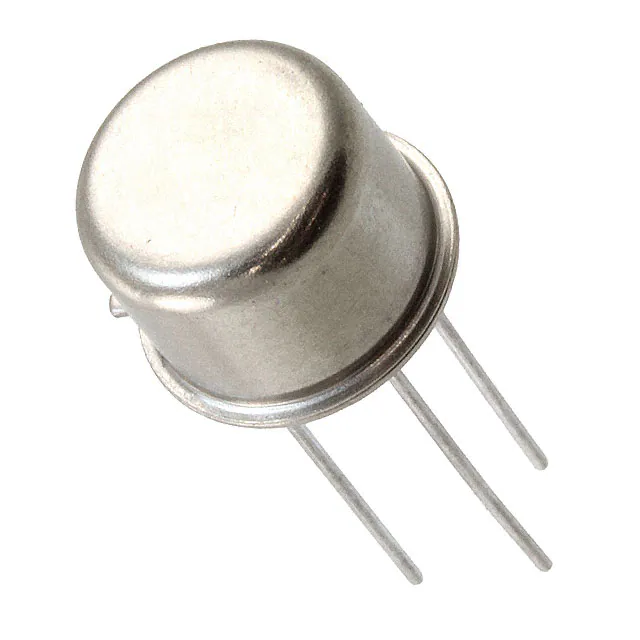

| Package / Case | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-5 | TO-5 | TO-5 | TO-39 |
